Controlled Rated Freezer for Laboratory & Medical Use

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Controlled Rate Freezer for IVF & Embryo Storage

Programmable Freezer for Stem Cell Research

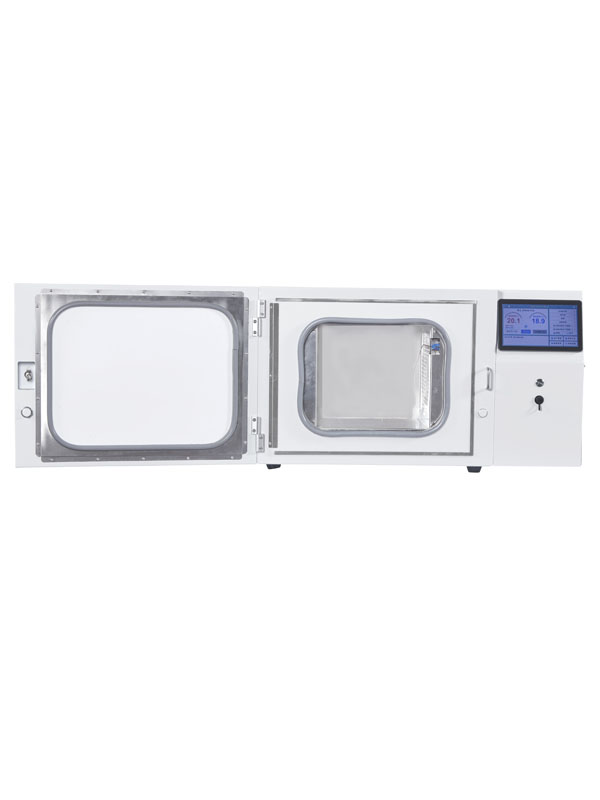

Controlled Rated Freezer for Laboratory & Medical Use

Widely used in research and medical fields for crvopreserving cells, tissues, and biological samplesEquipped with an integrated cryobox system and advanced liquid nitrogen dispersion technology, itensures uniform, stable cooling effect suitable for GLP laboratories and lQ/0Q validation.

Model No. :
MCX-17/34/37/51
2.0 mL Vials :
380—1190
5.0 ml Vials :
228—714
Temperature Range :
50℃ ~ -190℃
25/50ml Blood Bags :
30—90
250ml Blood Bags :
10—30
Capacity :
17—51
Cooling Rate :
0.1℃—99.9℃/min
Heating Rate :
0.1℃—12℃/min
Temp. Uniformity :
＜2℃
Control Mode :
Microcomputer Control
Program Control :
Sample Temperature/Chamber Temperature
Display :
10-Inch LCD Touch Screen
Available Program :
6 Preset Programs, 20 User-Set Programs

Features

Features

Temperature Performance & control

This system operates across an extensive temperature range from +50°C to -190°C and delivers precise ramp rates of 0.1-99.9°C/min (cooling) and 0.1-12°C/min (heating)It maintains high uniformity with less than 2°C deviation between chamber pointsduring cooling and features dual-probe control for independent sample and chamberemperature management.

Intelligent Control System

Equipped with an Android-based microprocessor and 10-inch touchscreen interfacedisplaying real-time sample/chamber temperatures, the unit offers six pre-set programsand over twenty user-defined protocols, lts "Freezing Curve" function records anddisplays critical parameters including sample temperature, chamber temperature, andlatent heat for process documentation.

Robust Hardware Design

Featuring a powder-coated chamber body with stainless-steel interior and in-situfoamed insulation, the system ensures thermal retention and uniformity. The dual inletvalve design enhances operational stability, while an internal fan with protective meshgenerates horizontal laminar airflow for consistent coolant dispersion and temperaturedistribution, The front-opening door enables convenient access.

Operational Efficiency

Engineered for silent laboratory operation, the system prioritizes user-friendlyperformancein demanding environments.
